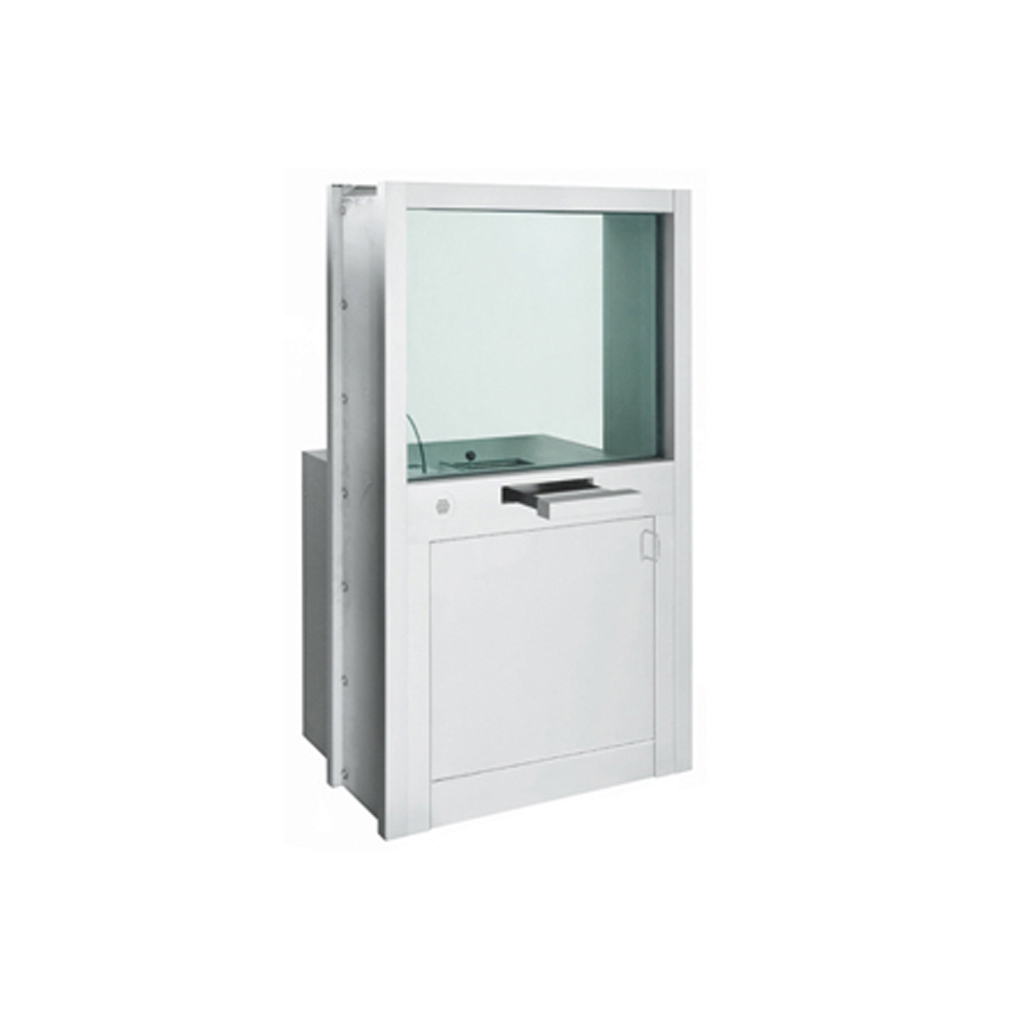

Model 7553 / 7553 F90

Completely fire and bullet-proof

The 7553 comes as a complete unit and is ready to install on delivery. It is designed to fit snugly straight into holes in the wall. The surrounding steel frame acts as a cover for cloaking the rough edge of the wall cavity. If required, the 7553 can be delivered with official certification of F90 fire resistance.

Features Model 7553:

  • Case hatch model 105 with swivel doors
  • Pass-through for outdoor counter Model 53
  • Two-way communication system (public) with automatic loudspeaker and microphone
  • Glazing to safety standard C3 SF or BR4N.S.
  • Window frame and in-built surround made of steel/enamelled steel sheeting
  • Drawer for IDs and documents up to DIN A4
  • Automatic safety lock when pushed in
  • Excellent insulation against dust and drafts
  • Adheres to ballistic class M3
  • Fulfils UV counter criteria

Further options:

  • Available with Venetian effect blinds and lighting
  • Higher ballistic classes if required
  • Fire resistant to F90 (certified)
  • And more, as requested

Construction:

  • Made with solid sheet steel
  • Available in all RAL colours
  • Sheet cut with precision laser machines

Application

The 7553 is ideal for handing over valuables such as confidential documents in briefcases, money and safety deposit boxes, and even major sums of money. It is also suitable for handing over identification documents, receipts, firearms and similar.
The Wurster 7553 was the first cash hand-over unit in Germany to be certified fire retardant to class F90 by the Material Testing Unit Agency in Brunswick (Braunschweig).

Installation

The unit comes complete with wiring and can be installed without hassle into existing holes in the wall. To do this, the inner steel frame is removed and the whole unit is then inserted from the outside (customer side). The frames are then screwed on. The unit requires access to a nearby electricity socket on the inside (counter side).



Certificate

Certificate F90 Mod. 7553
