Model 52-01

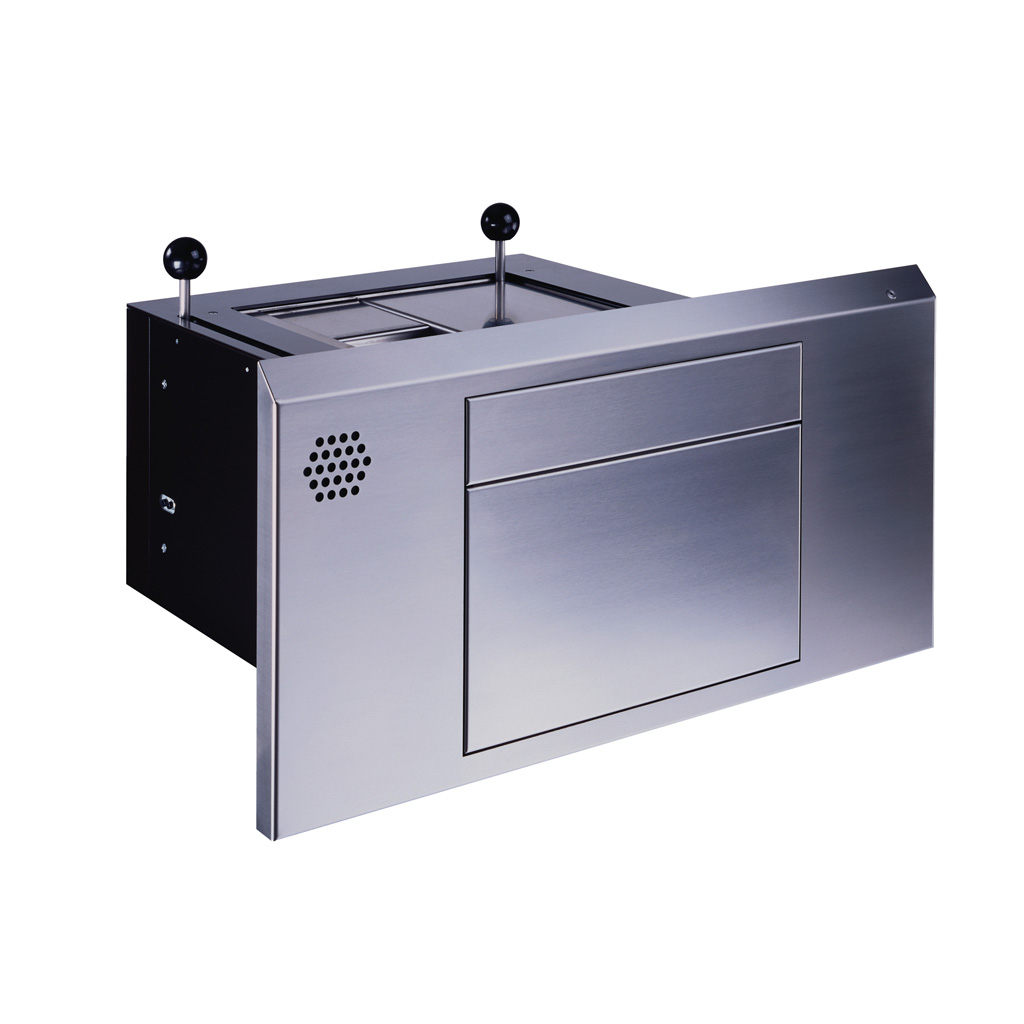

Cash-drawer model 52-01

Combined pass-through in ballistic protection class M3/FB4 with integrated two-way intercom. Use in petrol station as night counter, gatehouses and kiosks.

Operation

Upper drawer with coin tray for quick removal of cash and passing through receipts, lower drawer for passing through objects up to 170 mm high, such as 5-liter petrol canisters. A modified version of this model is also available for passing through PIN pads (Model 52-01 3S).

Locking

Locks automatically when closed in final position.

Design

Steel plate with black-brown coating. Upper drawer and front fascia made of brushed stainless steel.
All metal parts have been produced using state-of-the-art precision laser cutting technology for ultimate quality

Firearms protection

Materials offer firearms protection class FB4. Model 52.01 H fulfils German UVV regulations.

Installation

The unit comes ready for mounting in prepared walls or façade recesses. It is mounted from the outside by inserting the unit into the recess before screwing it tight underneath on the inside. Consideration must be given to access requirements and the possible need to remove the unit later in the unlikely event of repairs. The unit is very compact and suitable for use in areas with limited space.

Certificates

Certificate M3

Certificate FB4
